Fine Filters

Price 3000.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Fine Filters Specification

Product Type
AIR FILTER

Ozone Generator
No

UV Sterilizer
No

Sealing
Polyurethane or Epoxy

Recommended Final Pressure Drop
250 Pa

Packing Type
Carton Box

Frame Material
Aluminium, Galvanized Iron or Stainless Steel

Color
White / Silver

Maximum Temperature
80C

Flame Retardancy
Optional

Customization
Available as per client requirement

Fine Filters Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Fine Filters

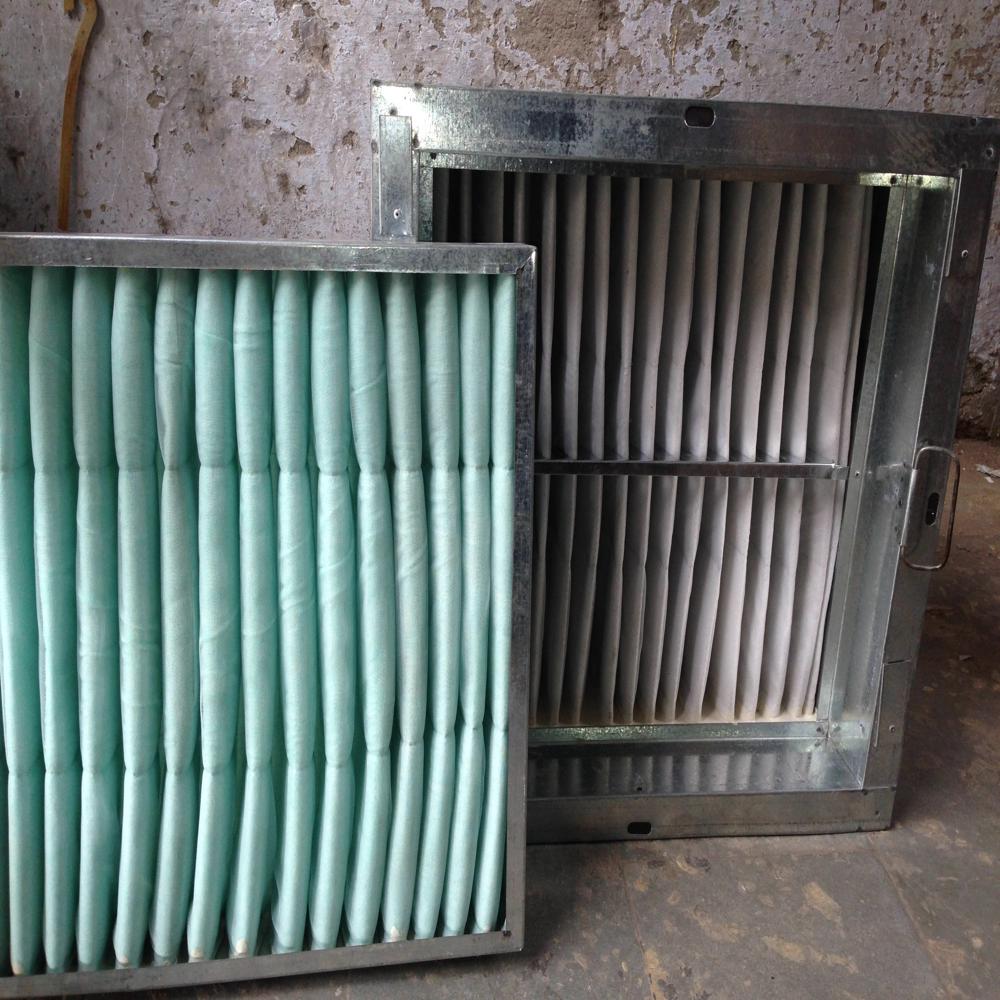

ATHLETE Fine Filters: Fine filters, also referred to as MICROVEE FILTERS, are indispensable components installed within Air Handling Units (AHUs) to ensure optimal air quality. Their primary function is to prevent the passage of dust particles and contaminants, guaranteeing that only clean and purified air circulates through the HVAC system. These are extended surface filters that can be manufactured either in either "Rigid pocket" or "Soft pocket" types to suit the application. They are available up to filtration efficiency of 95% for 1micron particle size. (Overall filtration efficiency by using discrete particle count efficiency test method). Suitable for use as filter grades F5 to F9 of EN779 and MERV 8 to MERV 15 of ASHRAE 52.2. Can be manufactured with or without "Flange" or "Header". Optional perforated metal or expanded metal guard.

Available in casing thickness from 0.5 to 1.5 mm in MOC variants of Galvanized sheet steel, Aluminium or Stainless steel in varying depths of 25, 100, 150, or 300 mm.

Suitable surface finish for the casing can be provided.

Choose the right grade of filter that suits your requirement from the table below:

Eurovent 4/5	EU3	EU4	EU5	EU6	EU7	EU8	EU9
EN 779	G3	G4	F5	F6	F7	F8	F9
Arrestance	60 to 80%	80 to 90%	90 to 95%	95 to 98%	>98%	>98%	>98%
Dust spot efficiency	< 20%	20 to 35%	40 to 55%	60 to 80%	80 to 90%	90 to 95%	>95%
MERV	5,6	7,8	9,10	11,12	13	14	15
% Min. PSE @ 10 micron	90	98	100	100	100	100	100
% Min. PSE @ 5 micron	75	80	95	98	100	100	100
% Min. PSE @ 3 micron	NA	NA	85	90	95	98	100
% Min. PSE @ 1 micron	NA	NA	55	70	85	90	95
% Min. PSE @ 0.5 micron	NA	NA	35	50	65	75	85
% Min. PSE @ 0.3 micron	NA	NA	20	40	50	60	70

Manufactured in standard sizes as mention below and also for the customer's specific sizes.

Construction: high quality synthetic non-woven media is housed inside a filter frame supported by a fine aluminium mesh on one side and HDPE media on the other side.

SPECIFICATION
Efficiency	95% for 5 micron (typically F5)
Filtration Class	Filter grades F5 F9 of EN779, ASHRAE 52.2 equivalent MERV 9-15 and Eurovent EU5 EU9 are available
Frame Type	Available in flange or box type
Frame Material	Standard model is constructed in Galvanized steel. Other models with Aluminium Anodized/Stainless steel frame with or without powder coating are also available on order.
Filter Media	HDPE and non-woven synthetic.
Gasket	Supplied with PU foam gasket, neoprene gasket can be ordered on request
Separators	Crimp / Comb Separators used to keep pleats in place.
Sealant	PU based epoxy
Support	Large frame size models are made wobble resistant using GI/Aluminium/SS support
Face Guard	No face guard with standard model is supplied. On order/request filter can be protected with expanded/welded mesh on both sides
Nominal Depth	Depth size is available from 2.0 inches to 12 inches
Sizes	Standard size of the filter is 610 x 610 x 50mm in box or flange type. Other sizes are build on order.
Pressure Drop	Initial pressure drop ~3.0 mm WG and recommended final pressure drop is 15-18mm WG
Face Velocity	1.25 m/s for 150 mm thick & 2.5m/s for 300mm thick
Operating Conditions	Filter can withstand temperature up to 80oC and relative humidity of 100% at 0 condensation. Filter is washable or can be cleaned by applying air pressure and reused. Filters that can withstand high temperature can be made on request.
Application	Athlete Pre filters are most suited for: Air Handling Units (AHUs), Air-conditioning systems, Power Plants, Chemical and Fertilizer complexes, Green Houses, Automatic Drain Holes, Paint Shops, Textile Mills, Cement Factories, Laminar Air Flow Units, Biosafety Hoods, Fan Filter Units (FFU), Gas Turbine Industry, Compressor, Diesel Engines, Nuclear Power Station, CD-Rom Production Industry, Picture Tube Production Industry, Semi-conductor Industry, Aeronautical Industry and Miscellaneous Industrial Ventilation.

Athlete Fine Filter Selection Chart (F5)
Model No.	Dimensions (inches)	Dimensions (millimeters)	Rated Airflow	Pressure Drop (mm WG)
Cfm	M3/hr	Initial	Final
AMF FF1	12 x 12 x 6	305 x 305 x 152	250	425	5	18
AMF FF2	12 x 12 x 12	305 x 305 x 305	500	850	5	18
AMF FF3	24 x 12 x 6	610 x 305 x 152	500	850	5	18
AMF FF4	24 x 12 x 12	610 x 305 x 152	1000	1700	5	18
AMF FF5	24 x 24 x 6	610 x 610 x 152	1000	1700	5	18
AMF FF6	24 x 24 x 12	610 x 610 x 305	2000	3400	5	18

Custom build sizes offered on request

Introducing our Trending Fine Filters, meticulously crafted from Rare aluminium, galvanized iron, or stainless steel for a Phenomenal performance. These matchless filters endure temperatures up to 80C and feature unmatched sealing with either polyurethane or epoxy. With efficiency levels reaching an incomparable 95%, our filters are perfect for HVAC systems, clean rooms, and more. Optional flame retardancy, custom colors (white/silver), and sizes are available. Order now for a product that sets the benchmark-designed for both commercial and passenger vehicles, universally fitting your needs.

Exceptional Features & Versatile Applications of Fine Filters

Our Fine Filters, with an astonishing efficiency of up to 95%, are built using aluminium, galvanized steel, and synthetic media. These filters exhibit phenomenal durability, offering a lifespan of 6-12 months even in challenging environments. Engineered for duct or panel mounting, they are used as essential components in HVAC systems, pharmaceuticals, clean rooms, and paint booths. Their matchless combination of performance and adaptability makes them ideal for commercial and passenger vehicles alike.

Order Process, Delivery, and Offer Details for Fine Filters

Order completion is made seamless with flexible terms including FOB Indian Port. We offer prompt sample availability for client satisfaction. Payment terms are designed for convenience-options can be discussed according to your requirements. From initial order to final delivery, our process ensures that your filters arrive securely packed in carton boxes, ready for installation. Don't miss this opportunity-place your order now to experience matchless quality and prompt service.

FAQ's of Fine Filters:

Q: How do I choose the right Fine Filter material for my application?

A: Selecting the right Fine Filter material depends on your environment and requirements. Aluminium is lightweight and corrosion-resistant, galvanized iron offers robust strength, and stainless steel provides incomparable durability. Our experts can help you choose the best option for your specific usage.

Q: What is the process for ordering customized Fine Filters?

A: Clients can request customization by sharing dimensions, sealing preferences, and other specifications. Our team finalizes the design, prepares samples, and upon approval, completes the order for timely delivery.

Q: Where can these Fine Filters be installed?

A: These Fine Filters are suitable for duct or panel mounting in HVAC systems, clean rooms, pharmaceuticals, and paint booths. Their universal design also allows installation in commercial and passenger vehicles.

Q: When should Fine Filters be replaced?

A: Fine Filters should typically be replaced every 6 to 12 months, depending on environmental conditions, usage, and the recommended final pressure drop of 250 Pa.

Q: What are the benefits of using these Fine Filters in commercial settings?

A: Using these Fine Filters ensures superior air quality, longer equipment lifespan, energy efficiency, and reduced maintenance, making them a matchless choice for any commercial operation requiring clean airflow.
