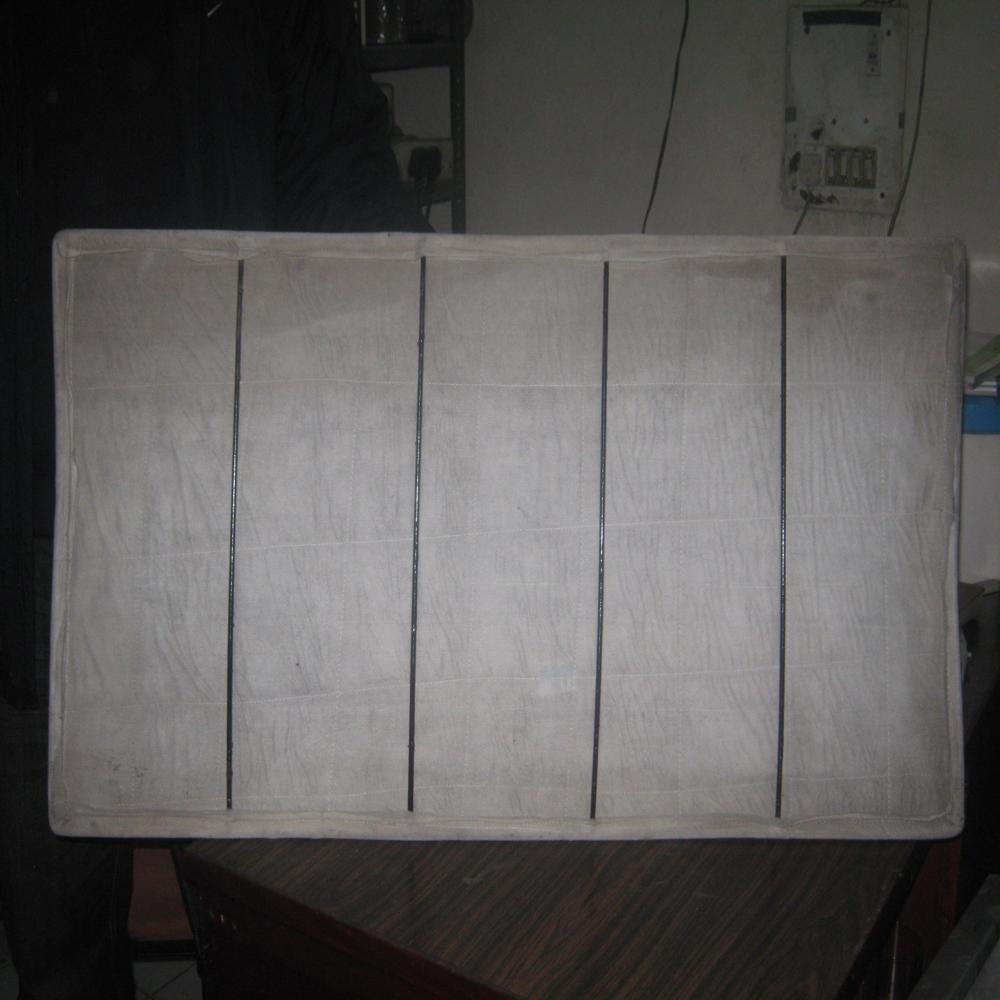

Rod Type Metal Box Frame

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Rod Type Metal Box Frame Specification

Frame Finish
Corrosion-resistant coating

Color
Metallic Silver

Maintenance
Washable and reusable

Operating Temperature Range
-20C to +80C

Surface Treatment
Powder Coated

Mounting Accessories
Included

Shape
Rectangular

Edge Profile
Seamless welded corners for rigidity

Rod Type Metal Box Frame Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Rod Type Metal Box Frame

ATHLETE Pre Filters are designed to meet the requirements of high efficiency filtration under high chemical exposure and high humidity conditions. These are available in 3 different variations namely: H.D.P.E (High Density Polythene) pleated/rod type, Pleated Channel type and Rod-Frame type PH Filter. All the pre filters are made under strict quality control scanner for complete customer satisfaction and comply with recent ASHRAE 52.2/EN779/EUROVENT standards.

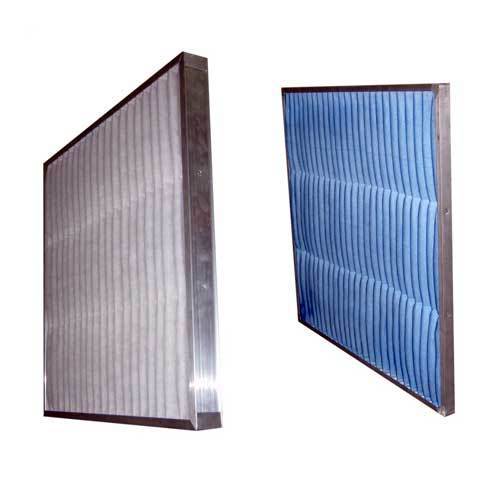

HDPE pleated/Rod type pre filter

Construction: are made from high quality synthetic non-woven media, supported by a fine aluminium mesh from one side and HDPE media from other side. Media is then housed inside an extruded aluminium frame.

SPECIFICATION
Efficiency	Standard HDPE pleated type filters have an efficiency of 90% for 10 micron size particles. Pre filters with an efficiency rating of 80 to 90% to capture 10 micron to 25 micron size particles are also available on order.
Filtration Class	Filter grades G3, G4, F5 of EN779, ASHRAE 52.2 equivalent MERV 6, 7, 8, 9, 10 and Eurovent EU3, EU4 and EU5 are available
Frame Type	Available in flange or box type
Frame Material	Standard model is constructed in Galvanized steel. Other models with Aluminium Anodized/Stainless steel frame with or without powder coating are also available on order.
Filter Media	HDPE and non-woven synthetic.
Gasket	No Gasket is installed in standard filter model. Non-woven synthetic/Rubber gasket can be ordered on request
Separators	None
Sealant	PU based epoxy
Support	Large frame size models are made wobble resistant using GI/Aluminium/SS support
Face Guard	No face guard with standard model is supplied. On order/request filter can be protected with expanded mesh on both sides
Nominal Depth	Depth size is available from 1.0 inches to 6 inches (Pre HDPE Pleated and rod type)
Sizes	Standard size of the filter is 610 x 610 x 50mm in box or flange type. Other sizes are build on order.
Pressure Drop	Initial pressure drop ~2.5mm WG and recommended final pressure drop is 5-10mm WG
Operating Conditions	Filter can withstand temperature up to 80oC and relative humidity of 100% at 0 condensation. Filter is washable or can be cleaned by applying air pressure and reused.
Application	Athlete Pre filters are most suited for: Air Handling Units (AHUs), Air-conditioning systems, Power Plants, Chemical and Fertilizer complexes, Green Houses, Automatic Drain Holes, Paint Shops, Textile Mills, Cement Factories, Laminar Air Flow Units, Biosafety Hoods, Fan Filter Units (FFU), Gas Turbine Industry, Compressor, Diesel Engines, Nuclear Power Station, CD-Rom Production Industry, Picture Tube Production Industry, Semi-conductor Industry, Aeronautical Industry and Miscellaneous Industrial Ventilation.

Athlete Pre Filter Selection Chart
Model No.	Dimensions (inches)	Dimensions (millimeters)	Rated Airflow	Pressure Drop (mm WG)
Cfm	M3/hr	Initial	Final
APPF1	20 x 20 x 2	508 x 508 x 50			2.5	5
APPF2	24 x 20 x 2	610 x 508 x 50			2.5	5
APPF3	24 x 24 x 2	610 x 610 x 50			2.5	5

Custom build sizes offered on request

Discover instant savings and exceptional value with the Rod Type Metal Box Frame, engineered for enviable durability and optimal filtration. Featuring a corrosion-resistant coating and seamless welded corners, this premium box frame exudes opulence and high rigidity. Reduced maintenance is ensured with its washable, reusable design and powder-coated finish. The advanced synthetic fiber filter media delivers an impressive 99% efficiency, supporting airflow up to 1800 m3/h. Perfect for both commercial and passenger vehicles, this universal frame offers lasting performance and reliability, transforming your filtration system into an enviable asset.

Versatile Performance for Multiple Applications

The Rod Type Metal Box Frame is extensively used for engine air filtration, HVAC systems, and diverse industrial equipment. Engineered for reliability, it is favored by manufacturers, service providers, and suppliers across India and beyond. Key features include a seamless rectangular design, high filtration efficiency, corrosion resistance, and easy panel mounting. Conveniently washable and reusable, this opulent frame delivers outstanding performance and exceptional value to both commercial and passenger vehicle operators.

Global Availability and Quality Assurance

Our Rod Type Metal Box Frames are available for quick dispatch, ensuring reduced lead times for global buyers. Stock is always ready to meet demand, supporting markets across Asia, the Middle East, and Africa. Supplied at a competitive list price, these frames meet rigorous industry certifications for quality and performance, providing peace of mind to clients. With robust supply ability, customers are assured of timely deliveries and consistent product excellence.

FAQ's of Rod Type Metal Box Frame:

Q: How is the Rod Type Metal Box Frame installed?

A: The frame is designed for panel mount installation, and all necessary mounting accessories are included in the package for a straightforward setup in vehicles and industrial systems.

Q: What makes the Rod Type Metal Box Frame efficient for air filtration?

A: Equipped with advanced synthetic fiber media, this frame achieves a filtration efficiency of 99%, maintaining high airflow (1800 m3/h) while operating at a pressure of 120 Pa.

Q: Where can the Rod Type Metal Box Frame be used?

A: It is versatile and suitable for both commercial and passenger vehicles, as well as industrial HVAC systems and various industrial equipment requiring optimal air filtration.

Q: What is the maintenance process for this metal box frame?

A: Maintenance is simple-just wash and reuse the frame, as the powder-coated finish and corrosion-resistant material ensure easy cleaning and prolonged product life.

Q: What are the long-term benefits of using the RBX-220 model?

A: Users enjoy reduced replacement frequency, extended filter life up to 12 months, instant savings on maintenance, and exceptional durability, making it a value-driven choice for demanding applications.
