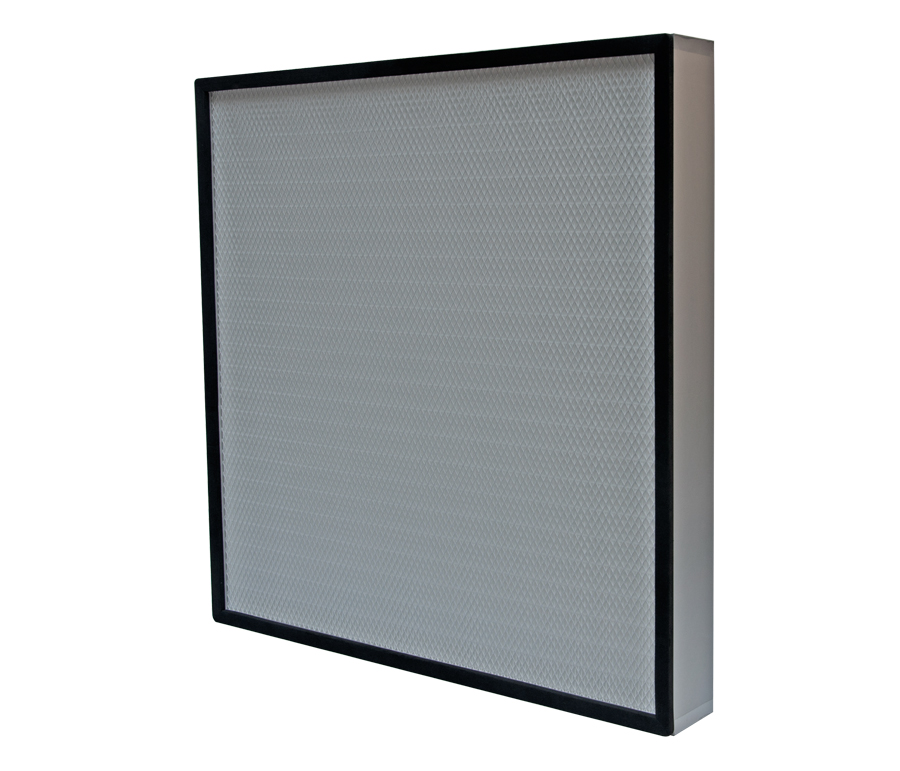

Mini Pleat Hepa Filter

Price 3500.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Mini Pleat Hepa Filter Specification

Faceguard
Protective mesh on air entry and exit sides

Shape
Rectangle

Max Operating Temperature
70C

Max Humidity Resistance
100% RH, non-condensing

Frame Material
ABS Plastic / Aluminum Alloy

Separators
Hot-melt adhesive spacing

Sealing Material
Polyurethane

Color
White

Mini Pleat Hepa Filter Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Mini Pleat Hepa Filter

We manufacture Mini Pleat Hepa Filters on state-of-the-art pleating machine with Hotmelt Glue separators. Both box type and flange type frame configurations are standard. Mini Pleat filters are available in various sizes and depths. Mini pleat filters are available from H10 grade to U15.

Mini Pleat filters have a wide range of applications, some of them are as follows:

Cleanrooms and factories for semiconductor manufacturing,
The food and beverage industry
Pharmaceutical industry
Biotechnology industry
Nuclear power and energy plants
Telecommunication industry
Aerospace industry
Movie theatre industry
Portable residential air cleaners
Cleanroom equipments such as biosafety cabinets, laminar air flow hoods etc
Hospitals and Operation theaters

MINI PLEAT HEPA FILTER (BOX / FLANGE TYPE)

MINI PLEAT HEPA filters are manufactured under strict quality control and are tested

SPECIFICATION
Efficiency	99.99% for filtering out particles down to 0.3 microns, which is rated as H14 in accordance to EN 1822 standard
Filtration Class	Fed 209E Class 100 or more recent ISO class 5 in accordance to ISO defined 14644 cleanroom standards can be achieved using this filter
Frame Type	Available in mini pleated flange or box type
Frame Material	Standard model is extruded aluminium frame with or without powder coating. Custom sizes are fabricated from sheets
Filter Media	100% Sub-Micronic boro-silicate glass fibre media
Gasket	Silicone coated PU foam gasket is used
Separators	Hot melt separators are used
Sealant	Epoxy resin or Polyurethane based sealant is used
Face Guard	Expanded metal guard (with or without powder coating) to protect the face of the filter, is available
Pressure Drop	Initial pressure drop ~15mm WG and recommended final pressure drop is ~30mm WG
Operating Conditions	Filter can withstand temperature up to 110C and relative humidity of 100%

High temperature HEPA Filters for hot air oven application are also available

*High flow and super high flow air filter are also available on order

*HEPA/ULPA filters with different filtration efficiency ratings in accordance to EU/ISO 14644 standards are also available on request

HEPA FILTERS GRADE AVAILABLE:

H13 GRADE: 99.97% EFFICIENCY FOR 0.3 MICRON SIZE PARTICLES
H14 GRADE: 99.99% EFFICIENCY FOR 0.3 MICRON SIZE PARTICLES
U15 GRADE: 99.995% EFFICIENCY FOR 0.3 MICRON SIZE PARTICLES

MINI PLEAT HEPA Filter Selection Chart
Size	Dimensions (inches)	Dimensions (millimeters)	Face Velocity (m/s)	Rated Airflow	Pressure Drop (mm WG) (H14 GRADE)
Cfm	M3/hr	Initial	Final
1	12 x 6 x 2.75	305 x 150 x 70	0.5	50	85	15	30
2	12 x 12 x 2.75	305 x 305 x 70	100	170	15	30
3	24 x 24 x 2.75	610 x 610 x 70	400	680	15	30
4	36 x 24 x 2.75	915 x 610 x 70	600	1020	15	30
5	48 x 24 x 2.75	1220 x 610 x 70	800	1360	15	30
6	12 x 6 x 3.5	305 x 150 x 90	0.75	75	127.5	15	30
7	12 x 12 x 3.5	305 x 305 x 90	150	255	15	30
8	24 x 24 x 3.5	610 x 610 x 90	600	1020	15	30
9	36 x 24 x 3.5	915 x 610 x 90	900	1530	15	30
10	48 x 24 x 3.5	1220 x 610 x 90	1200	2040	15	30
11	12 x 6 x 4.7	305 x 150 x 120	1.0	100	170	15	30
12	12 x 12 x 4.7	305 x 305 x 120	200	340	15	30
13	24 x 24 x 4.7	610 x 610 x 120	800	1360	15	30
14	36 x 24 x 4.7	915 x 610 x 120	1200	2040	15	30
15	48 x 24 x 4.7	1220 x 610 x 120	1600	2720	15	30

Custom build sizes offered on request

MINI PLEAT ULPA Filter Selection Chart
Size	Dimensions (inches)	Dimensions (millimeters)	Face Velocity (m/s)	Rated Airflow	Pressure Drop (mm WG) (H14 GRADE)
Cfm	M3/hr	Initial	Final
1	12 x 6 x 2.75	305 x 150 x 70	0.5	50	85	20	40
2	12 x 12 x 2.75	305 x 305 x 70	100	170	20	40
3	24 x 24 x 2.75	610 x 610 x 70	400	680	20	40
4	36 x 24 x 2.75	915 x 610 x 70	600	1020	20	40
5	48 x 24 x 2.75	1220 x 610 x 70	800	1360	20	40
6	12 x 6 x 3.5	305 x 150 x 90	0.75	75	127.5	20	40
7	12 x 12 x 3.5	305 x 305 x 90	150	255	20	40
8	24 x 24 x 3.5	610 x 610 x 90	600	1020	20	40
9	36 x 24 x 3.5	915 x 610 x 90	900	1530	20	40
10	48 x 24 x 3.5	1220 x 610 x 90	1200	2040	20	40
11	12 x 6 x 4.7	305 x 150 x 120	1.0	100	170	20	40
12	12 x 12 x 4.7	305 x 305 x 120	200	340	20	40
13	24 x 24 x 4.7	610 x 610 x 120	800	1360	20	40
14	36 x 24 x 4.7	915 x 610 x 120	1200	2040	20	40
15	48 x 24 x 4.7	1220 x 610 x 120	1600	2720	20	40

Select our Blue-ribbon Mini Pleat Hepa Filter, now available for a limited time and favored by in-demand environments. This excellent filtration solution features a high-efficiency (99.97% @ 0.3 micron) glass micro-fiber paper media, housed in a robust ABS plastic or aluminum alloy frame. Towering in performance, its polyurethane sealing material ensures leak-proof integrity while hot-melt adhesive spacers maintain optimal airflow. Designed for cleanrooms, laboratories, hospitals, and HVAC systems, the MPH-610 provides steadfast air purification and durability-even at 100% non-condensing humidity and 70C. Secure yours from a leading manufacturer, service provider, and supplier in India.

Applications and Key Features of the Mini Pleat Hepa Filter

The Mini Pleat Hepa Filter is expertly engineered for use in cleanrooms, laboratories, hospitals, and demanding HVAC systems. Its construction features durable ABS plastic or aluminum alloy frames, filled with ultra-efficient glass microfiber filter media. The filter's protective mesh faceguard ensures safety on both air entry and exit sides. Its rectangular shape and compact dimensions make it ideal for a variety of spaces requiring excellent airborne contaminant control and uncompromising reliability.

Packaging, Sample Provisions, and Export Markets

Mini Pleat Hepa Filters are meticulously packaged to prevent damage during Secure Shipping, ensuring all units arrive intact. Buyers may request sample units before finalizing their proposal amount or asking price. With a strong reputation in international commerce, these filters are regularly exported and supplied to major markets throughout Asia, Africa, and beyond. The emphasis on careful packaging and flexible sampling highlights both service excellence and a commitment to long-term partnerships.

FAQ's of Mini Pleat Hepa Filter:

Q: How is the Mini Pleat Hepa Filter installed in different systems?

A: The filter supports both flange mounting and gasket seal installation methods, allowing seamless integration into various HVAC systems, cleanrooms, laboratories, and hospital environments for efficient air purification.

Q: What are the benefits of using a Mini Pleat Hepa Filter in controlled environments?

A: This filter offers exceptional air filtration with a 99.97% efficiency rate at 0.3 microns, making it ideal for removing airborne contaminants in sensitive spaces such as cleanrooms, hospitals, and laboratories.

Q: When should the Mini Pleat Hepa Filter be replaced for optimal performance?

A: Typically, the filter should be replaced every 1-2 years, depending on usage intensity and environmental conditions, to maintain its top-tier filtration efficiency and protect critical environments.

Q: What materials contribute to the excellent performance of this filter?

A: The frame is made from robust ABS plastic or aluminum alloy, the sealing employs advanced polyurethane, and the filter media consists of glass micro-fiber paper, all contributing to its blue-ribbon efficiency and durability.

Q: Where is the Mini Pleat Hepa Filter most commonly used?

A: These filters are most commonly installed in cleanrooms, laboratories, hospitals, and HVAC systems, wherever premium air purification and contaminant control are required.
