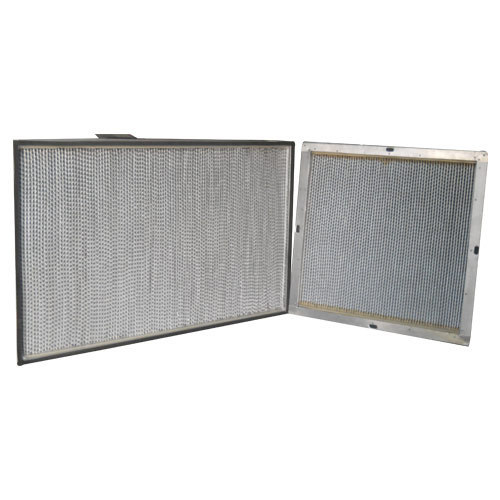

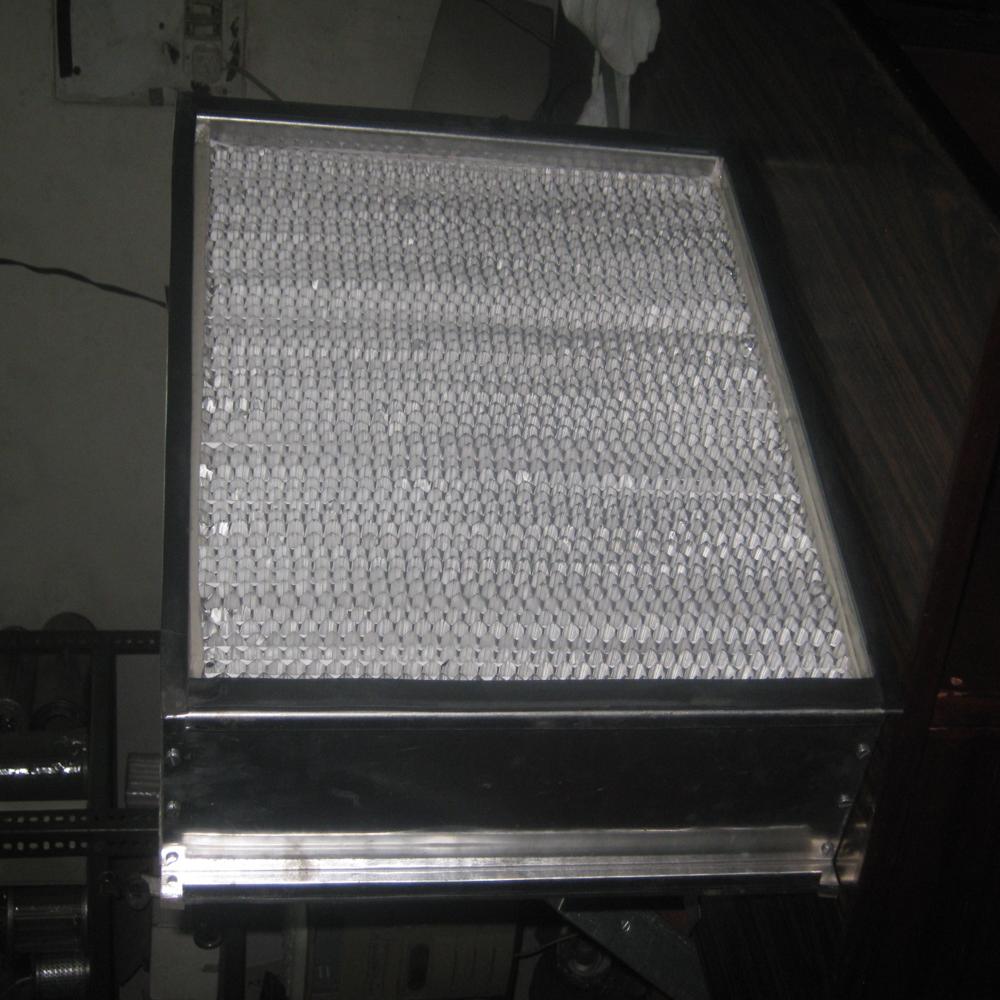

Hepa Filter

SPECIFICATION
Efficiency	99.99% for filtering out particles down to 0.3 microns, which is rated as H14 in accordance to EN 1822 standard
Filtration Class	Fed 209E Class 100 or more recent ISO class 5 in accordance to ISO defined 14644 cleanroom standards can be achieved using this filter
Frame Type	Available in deep pleated flange or box type
Frame Material	Standard model is constructed in aluminium frame.  SS 304/Galvanized steel frame with or without powder coating are also available on order.
Filter Media	100% Sub-Micronic boro-silicate glass fibre media We use HEPA Media Imported from Hollingsworth & Vose, USA
Gasket	Silicone coated pu foam gasket is used
Separators	Corrugated aluminium seperators are used
Sealant	Epoxy resin or Polyurethane based sealant is used
Face Guard	An optional perforated metal or expanded metal guard (with or without powder coating) to protect the face of the filter, is available only on request
Pressure Drop	Initial pressure drop ~20mm WG and recommended final pressure drop is ~50mm WG
Operating Conditions	Filter can withstand temperature up to 110C and relative humidity of 100%

HEPA Filter Selection Chart
Size	Dimensions (inches)	Dimensions (millimeters)	Rated Airflow	Pressure Drop (mm WG)
Cfm	M3/hr	Initial	Final
1	12 x 12 x 6	305 x 305 x 150	125	212	25	60
2	12 x 12 x 12	305 x 305 x 305	250	424	25	60
3	24 x 24 x 6	610 x 610 x 150	500	850	25	60
4	24 x 24 x 12	610 x 610 x 305	1000	1700	25	60
5	24 x 30 x 6	610 x 762 x 150	625	1065	25	60
6	36 x 24 x 6	915 x 610 x 150	750	1275	25	60
7	48 x 24 x 6	1220 x 610 x 150	1000	1700	25	60

Highly Recommended for its meritorious performance, this Hepa Filter offers pivotal air purification with a 99.97% efficiency for 0.3 micron particles. Featuring a robust anodized aluminium frame, EVA foam gasket, and hot melt/aluminium foil separator, it endures temperatures up to 80C. Initial pressure drop is 220 Pa, with conformity to EN1822 and ISO 29463 standards. Encased in corrugated packaging, this astounding filter is ideal for hospitals, pharmaceuticals, and cleanrooms. Limited stock available-Get It Now from India's trusted manufacturer, service provider, and supplier.

Unparalleled Application Versatility for Pristine Air

The Hepa Filter is expertly engineered for use in clean rooms, hospitals, pharmaceutical laboratories, modular air handling units, and HVAC systems. With a universal car make compatibility and ceiling-mounted installation type, it reliably protects any sensitive environment. Its stellar features include a robust anodized aluminium frame, micro glass fiber paper media, and astounding filtration performance. To ensure maximum surface efficiency, its modular design seamlessly fits various application areas, delivering exceptional air purity wherever needed.


Sample Availability, Pricing Policy, and Secure Packaging

Sample Hepa Filters are readily available upon request, subject to our transparent quotation and asking price policies. Experience our thorough support in sample transport services to your destination. Products are packaged securely in high-strength corrugated boxes for maximum protection during delivery. Our sample policy is flexible, ensuring you can evaluate the product before bulk procurement. Request a quotation today to explore our competitive prices and excellent shipping solutions directly from our manufacturing facility in India.
